Engine Control Instruments

Reliable instrumentation for optimal engine performance

Tachometer

The AcquaLink® Tachometer precisely displays the engine revolution.

Tachometer
Coolant Temperature gauge
Engine Oil Temperature gauge
Pyrometer
Ammeter
Oil Pressure gauge
Transmission Pressure gauge
Turbo Charger gauge
Voltmeter

Overview

The AcquaLink® engine control instruments monitor reliably every component of the engine such as engine revolution, battery charge and voltage to ensure optimal engine performance.

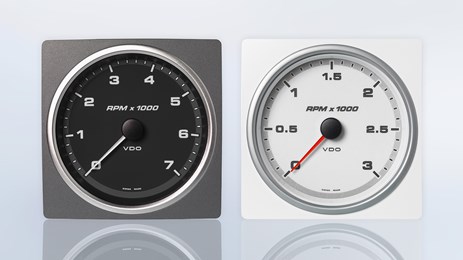

Tachometer

The VDO Tachometer displays RPM information received from the VDO AcquaLink® NavBox or the NMEA 2000® data bus and distributes additional engine information to optional 52 mm AcquaLink® EasyLink Gauges.

  • 2x VDO Bus connectors, 1x AMP Superseal EasyLink
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 110 mm
3000 rpm
12 – 24 V Black
White
A2C59501913
A2C1338910001
Ø 110 mm
5000 rpm
12 – 24 V Black
White
A2C59501914
A2C1338920001
Ø 110 mm
7000 rpm
12 – 24 V Black
White
A2C59501915
A2C1338930001

Coolant Temperature gauge

The AcquaLink® coolant temperature gauge displays any sudden rise in coolant temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
120 °C / 250 °F
12 – 24 V Black
White
A2C59501931
A2C3968900001
Ø 52 mm
250 °F / 120 °C
12 – 24 V Black
White
A2C59501932
A2C1338570001

Engine Oil Temperature gauge

The AcquaLink® temperature gauge displays any sudden rise in oil temperature.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
150 °C / 300 °F
12 – 24 V Black
White
A2C59501926
A2C1338620001
Ø 52 mm
300 °F / 150 °C
12 – 24 V Black
White
A2C59501927
A2C1338630001

Pyrometer

The AcquaLink® pyrometer gauge indicates the exhaust temperature at the end of the exhaust pipe.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
900 °C / 1650 °F
12 – 24 V Black
White
A2C59501933
A2C1338660001
Ø 52 mm
1650 °F / 900 °C
12 – 24 V Black
White
A2C59501934
A2C1338670001

Oil Pressure gauge

The AcquaLink® pressure gauge detects fluctuations in engine oil pressure.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
10 bar / 150 psi
12 – 24 V Black
White
A2C59501935
A2C1338600001
Ø 52 mm
150 psi / 10 bar
12 – 24 V Black
White
A2C59501936
A2C1338610001

Transmission Pressure gauge

The AcquaLink® pressure gauge detects fluctuations in gear oil pressure.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
30 bar / 440 psi
12 – 24 V Black
White
A2C59501937
A2C1338690001
Ø 52 mm
450 psi / 30 bar
12 – 24 V Black
White
A2C59501938
A2C1338700001

Turbo Charger gauge

The AcquaLink® pressure gauge detects changes in the turbocharger boost.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
2 bar / 30 psi
12 – 24 V Black
White
A2C59501944
A2C1338720001
Ø 52 mm
30 psi / 2 bar
12 – 24 V Black
White
A2C59501945
A2C1338730001

Ammeter

The AcquaLink® ammeter gauge provides an overview of the entire electrical system. It displays the level of current being drawn or generated.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
- 60 / + 60 A
12 – 24 V Black
White
A2C59501942
A2C1338540001
Ø 52 mm
- 150 / + 150 A
12 – 24 V Black
White
A2C59501943
A2C1338550001

Voltmeter

The AcquaLink® voltmeter displays the status of generator and battery  and their loads on a voltage scale.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
8 – 16 V
12 – 24 V Black
White
A2C59501940
A2C1338740001
Ø 52 mm
16 – 32 V
12 – 24 V Black
White
A2C59501941
A2C1338750001
