Level Instruments

Precise level instrumentation

Waste water gauge

The AcquaLink® blackwater tank gauge displays the level of waste water.

Waste water gauge
Fresh water gauge
Fuel level gauge

Overview

The AcquaLink® level instruments monitor reliably the fuel tank, fresh water tank and waste water tank levels.

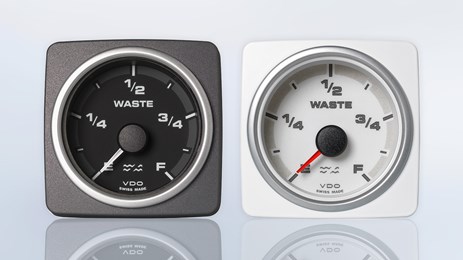

Waste water gauge

The AcquaLink® blackwater tank gauge displays the level of waste water.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
Empty – Full
12 – 24 V Black
White
A2C59501928
A2C1338760001

Fresh water gauge

The AcquaLink® tank gauge displays the level of fresh water

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
Empty – Full
12 – 24 V Black
White
A2C59501929
A2C1338640001

Fuel level gauge

The AcquaLink® fuel gauge provides information about the fuel level in the tank.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
Empty – Full
12 – 24 V Black
White
A2C59501930
A2C1338650001
