Navigation Instruments

Precise instrumentation to safely steer your boat

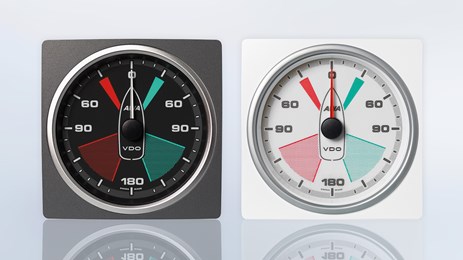

Apparent wind angle gauge

The wind angle gauge displays the direction of the wind.

Apparent wind angle gauge
Apparent wind angle gauge Magnified
Apparent wind speed gauge
Speed over Ground
Speed through Water gauge
Compass
Depth
Rudder Angle
Rudder Angle
Trim gauge

Overview

Reliable navigation instruments ensure secure and accident-free maneuvers even in difficult situations such as passages through shallow waters. The VDO marine navigation instruments show precisely and clearly safety-related data and more.

Apparent wind angle gauge

The AcquaLink® apparent wind angle gauge displays the direction of the wind. It can be daisy-chained for an easy installation on the VDO Bus.

  • 2x VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 110 mm
360°
12 – 24 V Black
White
A2C59501900
A2C1338770001

Apparent wind angle gauge Magnified

The AcquaLink® Apparent wind angle gauge magnified gauge displays the direction of the wind relative to the position of the boat. It can be daisy-chained for an easy installation on the VDO Bus.

  • 2x VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 110 mm
360°
12 – 24 V Black
White
A2C59501901
A2C1338780001

Apparent wind speed gauge

The AcquaLink® apparent wind speed gauge displays the wind speed apparent to the movement of the boat. It can be daisy-chained for an easy installation on the VDO Bus.

  • 2x VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 110 mm
0 – 50 knots
12 – 24 V Black
White
A2C59501902
A2C1338940001

Speed over Ground

Gauge to indicate Speed over Ground (SOG).

  • 2x VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 110 mm
12 knots
12 – 24 V Black
White
A2C59501908
A2C1338870001
Ø 110 mm
35 mph / 55 kmh
12 – 24 V Black
White
A2C59501910
A2C1338880001
Ø 110 mm
70 mph / 115 kmh
12 – 24 V Black
White
A2C59501909
A2C1338900001

Speed through Water gauge

This gauge indicates the speed through water.

  • 2x VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 110 mm
12 knots
12 – 24 V Black
White
A2C59501905
A2C1338830001
Ø 110 mm
50 knots
12 – 24 V Black
White
A2C59501906
A2C1338850001
Ø 110 mm
35 mph / 55 kmh
12 – 24 V Black
White
A2C59501907
A2C1338840001

Compass

The stylish AcquaLink® compass indicates the direction of travel - an essential instrument for all boats.

  • 2x VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 110 mm
360°
12 – 24 V Black
White
A2C59501911
A2C1338790001

Depth gauge

The AcquaLink® depth gauge facilitates safe passage through shallow waters.

  • 2x VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 110 mm
200 m / 660 feet
12 – 24 V Black
White
A2C59501903
A2C1338810001
Ø 110 mm
600 feet / 180 m
12 – 24 V Black
White
A2C59501904
A2C1338820001

Rudder Angle – Ø 110 mm

The AcquaLink® rudder angle gauges for wheel-controlled yachts continually display the current rudder position.

  • 2x VDO Bus connectors
  • < 150 mA
  • Reverse polarity protection
  • Anti-fog coated mineral glass lens
  • Front & rear side protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 110 mm
80°
12 – 24 V Black
White
A2C59501912
A2C1338860001

Rudder Angle – Ø 52 mm

The AcquaLink® rudder angle gauges for wheel-controlled yachts continually display the current rudder position.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 90° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
90°
12 – 24 V Black
White
A2C59501939
A2C1338680001

Trim gauge

The AcquaLink® trim gauge provides information about the position of the engine in relation to the boat‘s stern.

  • AMP Superseal Easylink connector
  • < 100 mA
  • 240° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog mineral glass lens
  • Front & rear protection rating IPX6, IPX9K
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Rubber Seal, Spinlock, Drilling Template, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
Up / Down
12 – 24 V Black
White
A2C59501925
A2C1338710001
