Engine Control Instruments

Master tachometer

The VDO Tachometer displays all inportant engine related data and distribute it to up to sixteen 52 mm satellite gauges.

Master tachometer
Master GPS speedometer
Satellite oil temperature gauge
Satellite coolant temperature gauge
Satellite pyrometer gauge
Satellite boost pressure gauge
Satellite oil pressure gauge
Satellite engine transmission oil pressure gauge
Satellite voltmeter
Ammeter

Overview

The reliable OceanLink instruments for engine control monitor reliably engine revolution, battery charge and voltage, coolant and oil temperature, turbo pressure as well as oil pressure.

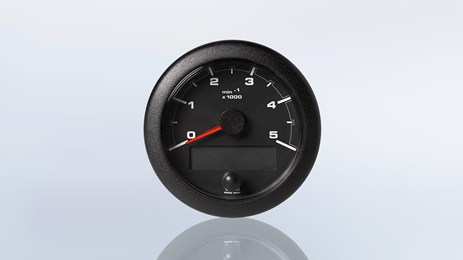

Master – Tachometer

The VDO Tachometer displays all inportant engine related data and distribute it to up to sixteen 52 mm satellite gauges.

  • 1x NMEA 2000® input
  • 1x J1939 and analogue input
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Connection cable, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 85 mm
3000 rpm
12 – 24 V Black
White
A2C1065660001
A2C1065670001
Ø 85 mm
5000 rpm
12 – 24 V Black
White
A2C1065720001
A2C1065800001
Ø 85 mm
7000 rpm
12 – 24 V Black
White
A2C1065810001
A2C1065820001

Master – GPS Speedometer

The new OceanLink GPS Speedometer features an embedded GPS antenna, an inverted dot matrix LCD and NMEA 2000® connectivity. The LCD displays information like position, date and time and – if connected to a NMEA 2000® network – sea water temperature, depth and speed through water information. The IP65 waterproof design allows the installation on open or enclosed boats. Up to 20 satellite gauges of 52 mm each, can be connected thanks to the integrated EasyLink connectivity.

  • 1x connector NMEA 2000®
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear side protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Rubber Seal, Spinlock, Connection cable, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 85 mm
0 – 14 knots / kmh / mph
12 – 24 V Black
White
A2C1351970001
A2C1352010001
Ø 85 mm
0 – 35 knots / kmh / mph
12 – 24 V Black
White
A2C1351980001
A2C1352080001
Ø 85 mm
0 – 70 knots / kmh / mph
12 – 24 V Black
White
A2C1351990001
A2C1352090001

Satellite – Coolant temperature

The OceanLink coolant temperature satellite gauge displays any sudden rise in coolant temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • AMP Superseal Easylink
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Spinlock, Rubber Seal, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
120 °C / 250 °F
12 – 24 V Black
White
A2C1065950001
A2C1065970001
Ø 52 mm
Cold / Hot (250 °F)
12 – 24 V Black
White
A2C1065980001
A2C1065990001

Satellite – Engine oil temperature

The OceanLink oil temperature satellite gauge displays any sudden rise in oil temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • AMP Superseal Easylink
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Spinlock, Rubber Seal, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
150 °C / 300 °F
12 – 24 V Black
White
A2C1065850001
A2C1065860001
Ø 52 mm
Cold / Hot (300 °F)
12 – 24 V Black
White
A2C1065870001
A2C1065880001

Satellite – Pyrometer

The OceanLink pyrometer satellite gauge indicates the exhaust temperature at the end of the exhaust pipe.

  • AMP Superseal Easylink
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Spinlock, Rubber Seal, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
900 °C / 1650 °F
12 – 24 V Black
White
A2C1349690001
A2C1349710001
Ø 52 mm
1650 °F / 900 °C
12 – 24 V Black
White
A2C1349700001
A2C1349730001

Satellite – Boost pressure

This OceanLink satellite oil pressure gauge detects fluctuations in gearbox oil pressure.

  • AMP Superseal Easylink
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Spinlock, Rubber Seal, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
2 bar / 30 psi
12 – 24 V Black
White
A2C1066140001
A2C1066150001
Ø 52 mm
Low / High (30 psi)
12 – 24 V Black
White
A2C1066160001
A2C1066170001



Satellite – Engine oil pressure

This OceanLink satellite pressure gauge detects changes in the turbocharger boost.

  • AMP Superseal Easylink
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Spinlock, Rubber Seal, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
10 bar / 150 psi
12 – 24 V Black
White
A2C1066000001
A2C1066010001
Ø 52 mm
Low / High (150 psi)
12 – 24 V Black
White
A2C1066020001
A2C1066030001

Satellite – Transmission oil pressure

The OceanLink gearbox transmission oil pressure gauge precisely indicates the transmission oil pressure.

  • AMP Superseal Easylink
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Spinlock, Rubber Seal, Installation Instructions, Safety Instructions

Range (outer / inner)

Voltage

Color

Article number

Ø 52 mm
10 bar / 150 psi
12 – 24 V Black
White
A2C1066000001
A2C1066010001
Ø 52 mm
Low / High (150 psi)
12 – 24 V Black
White
A2C1066020001
A2C1066030001

Satellite – Voltmeter

  • AMP Superseal Easylink
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Spinlock, Rubber Seal, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
8 – 16 V
12 – 24 V Black
White
A2C1066100001
A2C1066110001
Ø 52 mm
16 – 32 V
12 – 24 V Black
White
A2C1066120001
A2C1066130001

Satellite – Ammeter

  • AMP Superseal Easylink
  • < 100 mA
  • 270° pointer deflection angle
  • Reverse polarity protection
  • Anti-fog double layer plastic lens
  • Front & rear protection rating IPX5
  • Operating temperature range -20 °C / +70 °C

Aftermarket package:
Gauge, Bezel, Spinlock, Rubber Seal, Installation Instructions, Safety Instructions

Range

Voltage

Color

Article number

Ø 52 mm
- 60 / + 60 A
12 – 24 V Black
White
A2C1349640001
A2C1349660001
Ø 52 mm
- 150 / + 150 A
12 – 24 V Black
White
A2C1349650001
A2C1349680001
