Marine sensors

Flexible and reliable sensors for Marine applications.

Nav Sensor

The multifunctional AcquaLink® Nav Sensor is the gem of all sensors.

Nav Sensor
NMEA 2000® Wind Sensor
NMEA 2000® Fresh Water Capacitive Sensors
Waste Water Capacitive Sensors
Sumlog® Transducer Kit
Analogue Wind Sensor
Rudder Angle Sensors
Fresh Water Capacitive Sensors
Fresh Water Resistive Sensors
Ammeter Shunt
Electronic Pressure Sensors

Sensors for electronically controlled safety functions are the eyes, ears and the antenna of a modern-day high-tech vehicle. Nothing escapes them – neither the smallest temperature deviation inside cooling systems, nor the monitoring of engine and gear oil temperature. Intelligent safety systems are inconceivable without them.

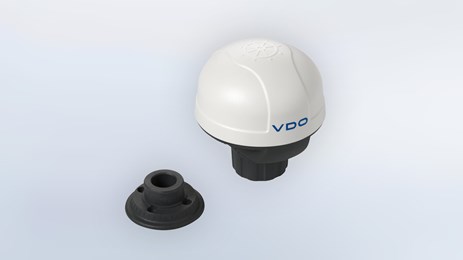

Nav Sensor

The multifunctional AcquaLink® Nav Sensor is the gem of all sensors. The inertial sensor complements the inbuilt satellite receiver module to provide accurate readings of the speed of travel as well as the pitch & roll (up and down) and YAW (sideways) motion of the boat. Compass readings can be displayed electronically thanks to the embeded compass, which also facilitate course corrections in electronic autopilots. The barometer and air temperature sensors are early indicators of forthcoming weather conditions.

  • Standard MicroC connector for NMEA 200
  • NMEA 2000® certified
  • IP65 protection rating
  • GPS Module: Position, time, boats vector, signal quality, satellites
  • Compass: + / -40° tilt angle, < 2° accuracy, alarm (rapid field strength change, tilt angle overrun, undervoltage condition)
  • Barometer: Air pressure, air temperature inside the sensor
  • Air temperature: -20 °C / +65 °C
  • Inertial sensor: Resolution 1 °/s
  • YAW-range 100 °/s, linearity + / -3 °/s
  • Acceleration-range 50 m/s2, linearity + / -1 m/s2
  • Calculated heeling, pitch & roll-range + / -50°
  • Operating temperature range -20 °C / +70 °C

Aftermarket packaging:
Nav Sensor, 2x brackets, Installation Instructions, Safety Instructions

Voltage

Article number

12 – 24 V A2C59501981

NMEA 2000® Wind Sensor

The wind vane turns in the direction of the wind and steers the wind direction gauge. The wind cups records the relative wind speed which in turn is displayed on the wind speed gauge.

Voltage

Article number

9 – 16 V A2C59501984



NMEA 2000® Fresh Water Capacitive Sensors

Fresh water level sensor (capacitive)
Sensor type: Adjustable dip

Voltage

Length

Article number

8 – 16 V 80 – 600 mm A2C1364680001
8 – 16 V 600 – 1200 mm A2C1364690001

NMEA 2000® Waste Water Capacitive Sensors

Waste water level sensor (capactive)
Sensor type: Adjustable lever

Voltage

Length

Article number

8 – 16 V 200 – 600 mm A2C1364660001
8 – 16 V 600 – 1200 mm A2C1364670001

Sumlog® Transducer Kit

The Sumlog® Transducer is required to measure boat speed through water. The Sumlog® includes two paddle wheels which can be exchanged to match the speed range of the boat, thereby supporting speeds from 0 to 18 or up to 50 knots respective of the installed paddle wheels. The NavBox supports up to two Sumlogs® which can be directly connected to the dedicated Sumlog® ports using a 4 pin M12 connector extension cable.

  • 4 pin M12 connector

Aftermarket package:
18 knots Sumlog® Transducer, additional 50 knots Paddle Wheels, Valve, Plug, 2x Rubber Seal, Installation Instructions, Safety Instructions

Voltage

Article number

12 – 24 V A2C59501986

Analogue Wind Sensor

The legacy wind vane turns in the direction of the wind and steers the wind direction gauge. The wind cups records the relative wind speed which in turn is displayed on the wind speed gauge. Also compatible with VDO “Standard”, “Logic” series.

Voltage

Article number

12 – 24 V A2C59501983

Rudder Angle Sensors

Voltage

Resistance ohm

Article number

Single station
12 / 24 V

10 – 180 Ω A2C1102950001

Dual station (fly bridge)
12 / 24 V

5 – 90 Ω A2C1102960001

Fuel Level Sensors

Item specifics

Signal Range
empty/full

Length

Article number

Fuel level sensor
Sensor type: Adjustable lever
3 – 180 Ω 150 – 600 mm 226-801-015-001G
Bulk adjustable lever arm sensor 3 – 180 Ω 150 – 600 mm 226-801-015-001C
Fuel level sensor
Sensor type: Adjustable lever for dual units (flying bridge)
3 – 180 Ω 150 – 600 mm N02-240-106
Fuel level sensor
Sensor type: Adjustable lever
240 – 33.5 Ω 150 – 600 mm A2C1364580001

Fresh Water Capacitive Sensors

Fresh water level sensor (capacitive) with adjustable dip

Voltage

Signal Range

Length

Article number

12 / 24 V 4 – 20 mA 80 – 600 mm N02-240-402
12 / 24 V 4 – 20 mA 600 – 1200 mm N02-240-404
12 / 24 V 4 – 20 mA 1200 – 1500 mm N02-240-406

Fresh Water Resistive Sensors

Fresh water level sensor (resistive) with adjustable lever

Voltage

Signal Range

Length

Article number

12 / 24 V 3 – 180 Ω 200 – 600 mm 226-828-001-001K

Waste Water Capacitive Sensors

Waste water level sensor (capactive) with adjustable dip

Voltage

Signal Range

Length

Article number

12 / 24 V 4 – 20 mA 200 – 600 mm N02-240-902
12 / 24 V 4 – 20 mA 600 – 1200 mm N02-240-904
12 / 24 V 4 – 20 mA 1200 – 1500 mm N02-240-906

Ammeter Shunt

Range

Voltage

Input

Article number

- 60 / + 60 A 12 / 24 V 60 mV A2C59514043
- 150 / + 150 A 12 / 24 V 60 mV A2C59514047

Electronic Pressure Sensors

The active pressure sensors with voltage output are used to measure pressue of gaseous and liquid media in a variety of applications at various locations.

The pressure sensor unit is based on a stainless steel sensing element and converts fluctuations of measuring medium into a pressureproportional electrical output signal (0.5 – 4.5 V).

Range

Voltage

Thread

Article number

10 bar 12 – 24 V M12 x 1.5 365-100-010-121C
16 bar 12 – 24 V M12 x 1.5 365-100-016-121C
30 bar 12 – 24 V M12 x 1.5 365-100-030-121C

Note:
Tightening Torque depends on threaded port size and sensor body material.
Connector type: Bayonet according to ISO15170 (formerly DIN 72585).
