Engine Control Instruments

Instrumentation to reliably monitor your boat

The ViewLine tachometer gauge indicates reliably the engine revolution.

The ViewLine tachometer gauge indicates reliably the engine revolution.

The ViewLine tachometer gauge indicates reliably the engine revolution.
The ViewLine tachometer gauge with LCD display provides you with values on engine hours, engine revolution and additionally a clock.
The ViewLine ammeter gives you an overview of the entire electrical system of your boat.
The ViewLine Voltmeter displays precisely the status of generator and battery.
The ViewLine pressure gauge detects fluctuations in engine oil pressure. This gauge ranges from 0 to 5 bar.
The ViewLine pressure gauge detects fluctuations in engine oil pressure. This gauge ranges from 0 to 10 bar.
The ViewLine oil pressure gauge detects fluctuations in gearbox oil pressure. This gauge ranges from 0 to 25 bar.
The ViewLine oil pressure gauge detects fluctuations in gearbox oil pressure. This gauge ranges from 0 to 400 psi.
The ViewLine oil pressure gauge detects fluctuations in gearbox oil pressure. This gauge ranges from 0 to 435 psi.
This ViewLine pressure gauge detects changes in the turbocharger boost.
The ViewLine coolant temperature gauge displays any sudden rise in coolant temperature.
The ViewLine oil temperature gauge displays any sudden rise in oil temperature.
The ViewLine pyrometer indicates the exhaust temperature at the end of the exhaust pipe.

The engine control instruments of our ViewLine series provide you with all necessary values to monitor your boat's engine precisely for maximum safety.

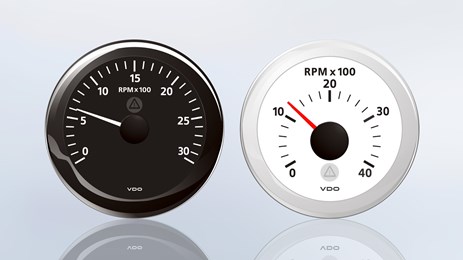

Tachometer

The ViewLine rev counter can be connected to conventional marine engines.

  • 8 and 14 pole Tyco / Hirschmann bush housing
  • Operating voltage 8 – 32 V
  • Accuracy +/- 2.5 % of full scale reading
  • < 175 mA current consumption with an LED warning light as standard
  • Number of pulses programmable via dip switch or PC software (ViewLine programming tool)
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 & 85 mm installation diameter
  • 50 mm installation depth
Range rpm Voltage Color Article number
Ø 52 mm
4000 rpm 8 – 32 V Black
White
A2C59512344
A2C59512347
6000 rpm 8 – 32 V Black
White
A2C59512345
A2C59512348
8000 rpm 8 – 32 V Black
White
A2C59512346
A2C59512349
Ø 85 mm
3000 rpm 8 – 32 V Black
White
A2C59512430
A2C59512433
4000 rpm 8 – 32 V Black
White
A2C59512431
A2C59512434
6000 rpm 8 – 32 V Black
White
A2C59512432
A2C59512435

Tachometer with LCD

The ViewLine Tachometer with LCD indicates engine revolution, engine hours, voltage and clock.

  • Operating voltage 8 – 32 V
  • Indication error < 2.5 % over the entire display range
  • Current consumption < 175 mA, with warning light (LED)
  • Output for acoustic alert (option)
  • Various sensor inputs
  • LC display size 37 mm x 11 mm
  • Individually programmable display e. g., for clock, trip, odometer, etc. via externally switchable button or PC software (ViewLine programming tool)
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 85 mm installation diameter
  • 50 mm installation depth
Range rpm Voltage Color Input Article number
Ø 85 mm
3000 rpm 8 – 32 V Black
White
W, Ind, Hall, Generator A2C59512390
A2C59512396
4000 rpm 8 – 32 V Black
White
W, Ind, Hall, Generator A2C59512391
A2C59512397
5000 rpm 8 – 32 V Black
White
W, Ind, Hall, Generator A2C59512392
A2C59512398
6000 rpm 8 – 32 V Black
White
W, Ind, Hall, Generator A2C59512393
A2C59512399
7000 rpm 8 – 32 V Black
White
W, Ind, Hall, Generator A2C59512394
A2C59512400
8000 rpm 8 – 32 V Black
White
W, Ind, Hall, Generator A2C59512395
A2C59512401

Ammeter

The ViewLine ammeter provides an overview of the entire electrical system.

  • 8 pole Tyco / Hirschmann MQS plug
  • < 2.5 % accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 100 mA, with integrated warning light (LED)
  • 240° display angle
  • Programmable warning point (PC software)
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range amp Voltage Color Input megavolt Article number
Ø 52 mm
- 60 / + 60 A 8 – 32 V Black
White
60 mV A2C59512328
A2C59512330
- 150 / + 150 A 8 – 32 V Black
White
60 mV A2C59512329
A2C59512331

Voltmeter

The ViewLine voltmeter displays the status of generator and battery and their loads on a voltage scale. Values exceeding the normal charging voltages can therefore be monitored exactly.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 16 V, 18 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • 90° display angle
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Voltage Color Article number
Ø 52 mm
8 – 16 V Black
White
A2C59512545
A2C59512546
18 – 32 V Black
White
A2C59512458
A2C59512459

Oil pressure gauge 5 bar

The ViewLine pressure gauge detects fluctuations in engine oil pressure. This gauge ranges from 0 to 5 bar.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range outer/inner Voltage Color Input ohm Article number
Ø 52 mm
0 – 5 bar
0 – 80 psi
8 – 32 V Black
White
10 – 184 W A2C59514123
A2C59514211
0 – 80 psi
0 – 5 bar
8 – 32 V Black
White
10 – 184 W A2C59514128
A2C59514214

Oil pressure gauge 10 bar

The ViewLine pressure gauge detects fluctuations in engine oil pressure. This gauge ranges from 0 to 10 bar.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range outer/inner Voltage Color Input ohm Article number
Ø 52 mm
0 – 10 bar
0 – 150 psi
8 – 32 V Black
White
10 – 184 W A2C59514111
A2C59514199
0 – 150 psi
0 – 10 bar
8 – 32 V White 240 – 33.5 W A2C59514202

Transmission oil pressure gauge 25 bar

The ViewLine oil pressure gauge detects fluctuations in gearbox oil pressure. This gauge ranges from 0 to 25 bar.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range outer/inner Voltage Color Input ohm Article number
Ø 52 mm
0 – 25 bar
0 – 350 psi
8 – 32 V Black
White
10 – 184 W A2C59514136
A2C59514206
0 – 350 psi
0 – 25 bar
8 – 32 V White 10 – 184 W A2C59514220

Transmission oil pressure gauge 400 psi

The ViewLine oil pressure gauge detects fluctuations in gearbox oil pressure. This gauge ranges from 0 to 400 psi.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range outer/inner Voltage Color Input ohm Article number
Ø 52 mm
0 – 400 psi
0 – 25 bar
8 – 32 V Black
White
10 – 184 W A2C59514145
A2C59514223

Transmission oil pressure gauge 435 psi

The ViewLine oil pressure gauge detects fluctuations in gearbox oil pressure. This gauge ranges from 0 to 435 psi.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range outer/inner Voltage Color Input ohm Article number
Ø 52 mm
0 – 30 bar
0 – 435 psi
8 – 32 V Black
White
10 – 184 W A2C59514141
A2C59514208

Gauge to indicate boost pressure

This ViewLine pressure gauge detects changes in the turbocharger boost.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range outer/inner Voltage Color Input ohm Article number
Ø 52 mm
0 – 2 bar
0 – 30 psi
8 – 32 V Black
White
10 – 184 W A2C59514149
A2C59514225

Coolant temperature gauge

The ViewLine coolant temperature gauge displays any sudden rise in coolant temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • 8 pole Tyco / Hirschmann MQS plug
  • +/- 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range outer/inner Voltage Color Input ohm Article number
Ø 52 mm
40° – 120 °C
105° – 250 °F
8 – 32 V Black
White
287.4 – 22.7 W A2C59514170
A2C59514237
105° – 250 °F
40° – 120 °C
8 – 32 V Black
White
287.4 – 22.7 W A2C59514176
A2C59514241

Oil temperature gauge

The ViewLine oil temperature gauge displays any sudden rise in oil temperature, thus helping to prevent serious damage to the engine and the associated expense.

  • 8 pole Tyco / Hirschmann MQS plug
  • +/- 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range outer/inner Voltage Color Input ohm Article number
Ø 52 mm
50° – 150 °C
120° – 300 °F
8 – 32 V Black
White
322.8 – 18.6 W A2C59514160
A2C59514231
120° – 300 °F
50° – 150 °C
8 – 32 V Black
White
322.8 – 18.6 W A2C59514165
A2C59514234

Pyrometer

The ViewLine pyrometer indicates the exhaust temperature at the end of the exhaust pipe (up to 900 °C / 1650 °F). The relationship of this value to the maximum permitted exhaust temperature shows how efficient combustion is at that particular load.

  • 8 pole Tyco / Hirschmann MQS plug
  • < 2.5 % accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 100 mA, with integrated warning light (LED)
  • 240° display angle
  • Programmable warning point (via optional PC software)
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth
Range temp
Voltage Color Input megavolt Article number
Ø 52 mm
100° – 900 °C 8 – 32 V Black
White
37 mV A2C59512332
A2C59512333
250° – 1650 °F 8 – 32 V Black
White
37 mV A2C59512334
A2C59512335

Dealer Search / Contact us

Locate the right contact, dealer or service partner worldwide

Contact

Downloads

Download brochures, data sheets, user manuals or catalogues:

© Continental Automotive GmbH 2015

VDO - A Trademark of the Continental Corporation
