Precise level instruments provide reliable information about all relevant level values, e.g. the levels of fuel or fresh water tanks.

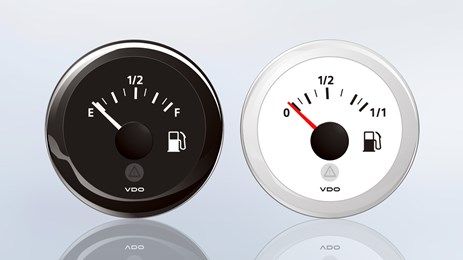

Fuel level gauge

The ViewLine fuel level gauge provides information about the fuel level in the tank and can be used with lever type tank sensors.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated warning light (LED)
  • Input signal: standard Ω values for dip type sensors
  • 90° display angle
  • Optional makepoint switch can be connected
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth

Aftermarket package:
Fuel level gauge, Adapter cable 8 pole, Round bezel, Pushbuttons for mode and configuration, Spinlock nut, Rubber seal, QR code, Safety instructions

Range

Voltage

Color

Input

Article number

Ø 52 mm
Empty – Full
8 – 32 V Black
White
0 – 90 Ω A2C59514085
A2C59514186
Ø 52 mm
0 – 1/1
8 – 32 V Black
White
3 – 180 Ω A2C59514082
A2C59514184
Ø 52 mm
Empty – Full
8 – 32 V Black
White
240 – 33.5 Ω A2C59514094
A2C59514190
Ø 52 mm
0 – 1/1
8 – 32 V Black
White
90 – 4 Ω A2C59514079
A2C59514182
Ø 52 mm
Empty – Full
8 – 32 V Black
White
90 – 4 Ω A2C59514088
A2C59514188

Fresh water level gauge (capacitive)

The ViewLine fresh water tank gauge indicates the level of fresh water. Capacity sensors can be fitted for a maximum depth of up to 1500 mm.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 150 mA, with integrated LED warning light (red)
  • Input signal: 4 – 20 mA current consumption (VDO fresh water sensor)
  • 90° display angle
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth

Aftermarket package:
Fresh water gauge, Adapter cable 8 pole, Round bezel, Pushbuttons for mode and configuration, Spinlock nut, Rubber seal, QR code, Safety instructions

Range

Voltage

Color

Input

Article number

Ø 52 mm
0 – 1/1
8 – 32 V Black
White
4 – 20 mA A2C59514676
A2C59514677

Fresh water level gauge (resistive)

The ViewLine fresh water gauge provides information about the water level in the tank and can be used with all types of tank sensors.

  • 8 pole Tyco / Hirschmann MQS plug
  • + / – 3.6° angle degree accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 140 mA
  • Input signal: standard Ω values
  • 90° display angle
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth

Aftermarket package:
Fresh water gauge, Adapter cable 8 pole, Round bezel, Pushbuttons for mode and configuration, Spinlock nut, Rubber seal, QR code, Safety instructions

Range

Voltage

Color

Input

Article number

Ø 52 mm
0 – 1/1
8 – 32 V Black
White
3 – 180 Ω A2C59514097
A2C59514192
Ø 52 mm
Empty – Full
8 – 32 V Black
White
3 – 180 Ω A2C59514099
A2C59514193

Waste water level gauge

The ViewLine blackwater tank gauge indicates the level of waste water. Capacity sensors can be fitted for a maximum depth of up to 1 500 mm.

  • 8 pole Tyco / Hirschmann MQS plug
  • < 2.5 % accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 100 mA, with integrated warning light (LED)
  • Input signal: 4 – 20 mA current consumption (VDO waste water sensor)
  • 240° display angle
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP6752 mm installation diameter
  • 50 mm installation depth

Aftermarket package:
Waste water gauge, Adapter cable 8 pole, Round bezel, Pushbuttons for mode and configuration, Spinlock nut, Rubber seal, QR code, Safety instructions

Range

Voltage

Color

Input

Article number

Ø 52 mm
0 – 1/1
8 – 32 V Black
White
4 – 20 mA A2C59512342
A2C59512343
