Various Instruments

Useful additional instrumentation

The clearly readable dial on the ViewLine quartz clock adds a stylish touch to every pleasure boat and yacht Cockpit.

The clearly readable dial on the ViewLine quartz clock adds a stylish touch to every pleasure boat and yacht Cockpit.

The clearly readable dial on the ViewLine quartz clock adds a stylish touch to every pleasure boat and yacht Cockpit.
The ViewLine outside temperature gauge can display both the engine compartment temperature and the current air temperature.
The ViewLine operating hours counter is only activated when the engine is running so only genuine engine operating hours are counted.

The quartz clock and the gauge that indicate outside temperature add a stylish look to every pleasure boat and yacht cockpit.

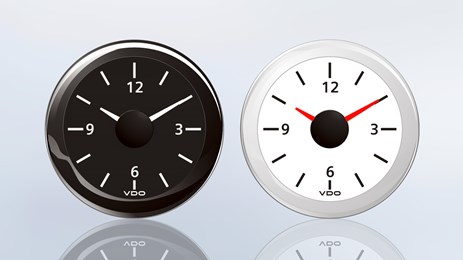

Clock

The clearly readable dial on the ViewLine quartz clock adds a stylish touch to every pleasure boat and yacht cockpit.

  • 8 pole Tyco / Hirschmann MQS plug
  • Operating voltage 8 – 16 V, 18 – 32 V
  • Current consumption < 10 mA
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth

Aftermarket package:
Clock gauge, Adapter cable 8 pole, Round bezel, Pushbutton for time setting configuration, Spinlock nut, Rubber seal, QR code, Safety instructions

Voltage

Color

Article number

Ø 52 mm
8 – 16 V
Black
White
A2C59513445
A2C59513443
Ø 52 mm
18 – 32 V
Black
White
A2C59513446
A2C59513444

Outside temperature gauge

The ViewLine outside temperature gauge can display both the engine compartment temperature and the current air temperature.

  • 8 pole Tyco / Hirschmann MQS plug
  • < 2.5 % accuracy over the entire display range
  • Operating voltage 8 – 32 V
  • Current consumption < 100 mA, with integrated warning light (LED)
  • 240° display angle
  • Programmable warning point (via optional PC software)
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth

Aftermarket package:
Outside temperature gauge, Adapter cable 8 pole, Round bezel, Pushbuttons for mode and configuration, Spinlock nut, Rubber seal, QR DB code, Safety instructions

Range

Voltage

Color

Input

Article number

Ø 52 mm
- 25° / + 50 °C
8 – 32 V Black
White
2k Ω A2C59512336
A2C59512338
Ø 52 mm
- 10° / + 120 °F
8 – 32 V Black
White
2k Ω A2C59512337
A2C59512339

Hour counter

The ViewLine operating hours counter makes it easy to stick to an effective maintenance schedule. It is only activated when the engine is running so only genuine engine operating hours are counted.

  • 8 pole Tyco / Hirschmann MQS plug
  • Operating voltage 9 – 30 V
  • Current consumption < 30 mA, with integrated LED function control light (red)
  • Reverse polarity protection
  • Anti-fog double lens
  • Front side protection rating IP67
  • 52 mm installation diameter
  • 50 mm installation depth

Aftermarket package:
Hour counter gauge, Adapter cable 8 pole, Round bezel, Pushbuttons for mode and configuration, Spinlock nut, Rubber seal, QR code, Safety instructions

Voltage

Color

Article number

Ø 52 mm
9 – 30 V
Black
White
A2C59512453
A2C59512454
