Single Instruments

Overview

World Wide Gauges is a standardized instrument platform for special vehicles and stationary machinery. With modular solutions in three housing variants and in two different illuminations (front - or back light) solution. Based on this instrument platform very cost effective customized solutions are available (dial design).

SingleViu

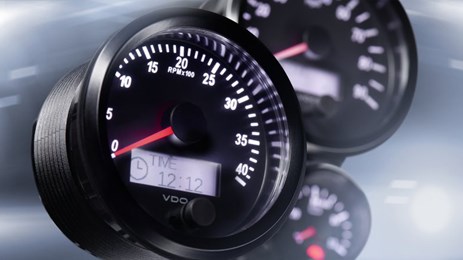

The SingleViu family is the new round-shaped instrument platform from VDO. Each gauge displays one parameter, ensuring an excellent overview and ease of use. The instruments are versatile, flexible and suitable for a wide range of applications on the market. SingleViu offers a persuasive combination of clear and classic optical design and RGB background illumination. Its robust design allows use in all fields of application and in all kinds of vehicles.

Thanks to the latest technology, the SingleViu gauges are also well prepared for the future. Equipped with a dual input mode, the gauges are ready for “plug and play” use with all customary sensors and integrated into the vehicle’s CAN bus. The many configuration options and customization possibilities offer flexible and custom-fit solutions for every intended use.

A wide range of variants are available for initial equipping, for retrofitting or for replacing existing instruments. They provide all the functions of the predecessor WWG, ViewLine and CANcockpit instruments.

The SingleViu gauges are available in a variety of types:

  • Diameter 52 mm
    Temperature, tank level, pressure, engine rpm, DEF / AdBlue, voltage and current indicators
  • Diameter 80/85 mm
    Speed and engine rpm indicators
  • Diameter 100 mm
    Speed and engine rpm indicators

Beside the pointer, the gauges with 80/85 and 100 mm diameter contain a display to show additional information and up to 5 customizable tell-tales.

Contact us to find out more.

Features and benefits at a glance:

  • CAN and analog input
  • RGB background illumination
  • Flexible to combine and easy to mount
  • Sturdy design thanks to mineral glass, high protection class of IP67 and flame-resistant housing
  • Double glazing system to prevent fogging
  • Configurability using PC tool and push-button
  • Design individually adaptable to customer requirements


Download: SingleViu brochure
SingleViu Contact

World Wide Gauges Cockpit International

  •  Panel installation
  • LC-display for speedo/tacho gauges
  • Front light technology

Benefits and Features

  • Analogue platform product
  • 52, 80 and 100mm gauges available
  • Different fixation concepts (nut, studs and bracket)
  • Mineral glass lens
  • Metal bezel

Technical Data

  • Operating voltage 12 or 24 V DC
  • Operating temperature -30°C to +85°C
  • IP 64 protection class (front)
  • Front light

World Wide Gauges Cockpit Vision

  • Panel installation
  • LC-display for speedo/tacho gauges
  • Full backlight technology

Benefits and Features

  • Analogue platform product
  • 52, 80 and 100mm gauges available
  • Different fixation concepts (nut, studs and bracket)
  • Mineral glass lens
  • Metal bezel

Technical Data

  • Operating voltage 12 or 24 V DC
  • Operating temperature -30°C to +85°C
  • IP 64 protection class (front)
  • Back light
